Pro Gas Analyser

Attractively priced, PC based 4 (or 5) gas, Petrol Exhaust Emissions Analyser, incorporating Extensive ‘User Help’ and Diagnostic Capability with minimal user maintenance. This Gas Analyser is probably the best on our market at the moment!

Pro-Gas main features:

  1. Extremely Fast Warm-Up & Auto Zero. Together, under one minute!
  2. It can Record exhaust Gas Data up to 24 Hrs.
  3. It has a Customer Database with Search/Print capabilities.
  4. Many Different printing formats to choose from.
  5. The Auto Help on Demand feature is a great Diagnostic tool with suggestions on possible causes of wrong air / fuel mixture.
  6. Chose between Graphical or Digital gas data presentation.
  7. Check Air to Fuel Ratio, Catalytic Converters Efficiency and Engine Combustion Efficiency in %.
  8. It can measure RPM (2 or 4 stroke) and Temperature (in C or F)
  9. It is easily upgradeable to 5 gas (NOx). Just connect and calibrate the Sensor and you’re done.
  10. Support is clearly available as the Gas Analyser is made in South Africa.
  11. It is so stable; you may never need to recalibrate it!
  12. Being PC based, the Screen size is enormous even on 15” monitors. The large colour digits are clearly readable even from as far as 5 metres.
  13. Intuitive Software with more than 50 pages of Help about understanding exhausts emissions. The Software is locally written so any updates are freely available.
  14. It has High Volume Dual Pump for fast gas delivery and sampling.
  15. Automatic Water-exhaust system with Low vacuum/air flow warnings.
  16. Supplied with 7.5m hose and Stainless Steel, Flexible, Exhaust Probe.
  17. Priced better than any other and packed with a bundle of features others can only dream about.
  18. Software works on Windows98SE, 2000 & XP (currently testing under Vista)

Note: Being a PC based unit, means, that you have to own a PC or Laptop with one spare USB or Com Port for connection.

Digital Gas Data

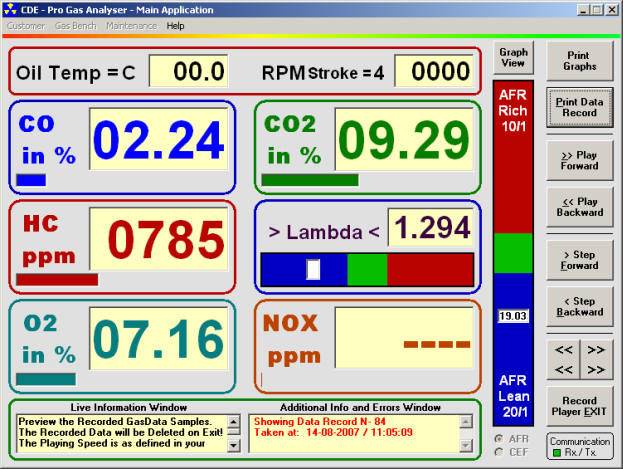

Petrol Exhaust Emissions Analyser - Digital Gas Data

AFR/ CEF/ Lambda

Petrol Exhaust Emissions Analyser - AFR CEF Lambda

Graphs Display

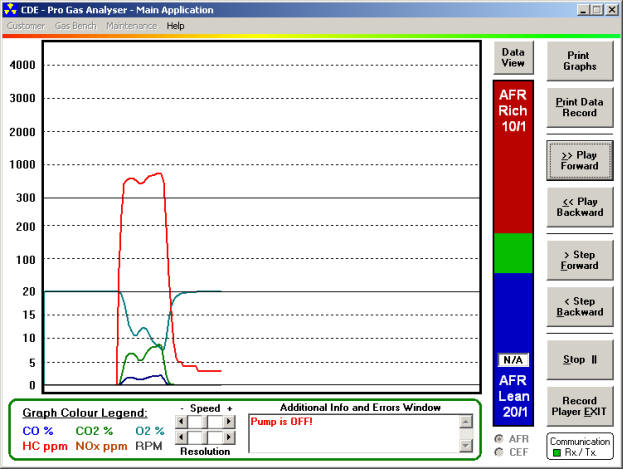

Petrol Exhaust Emissions Analyser - Live Graphs display

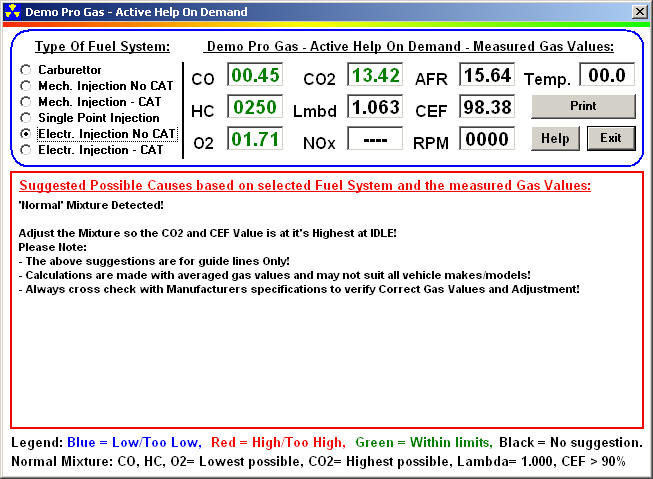

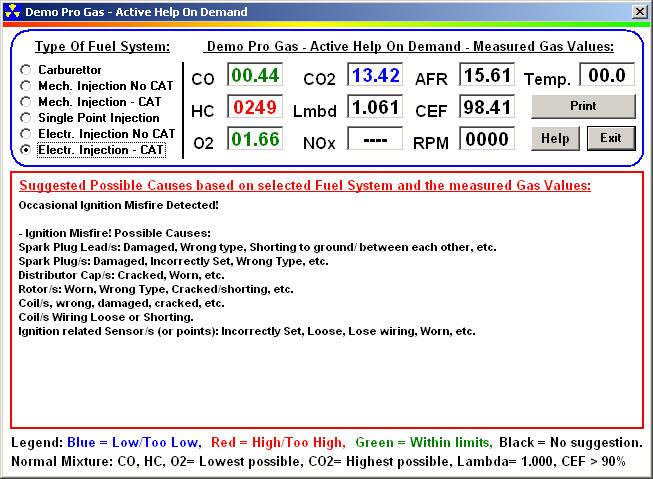

The jewel in its crown is that the Pro Gas Analyser Software offers Emission Diagnostic Capabilities through active, real time guidance. Simply by selecting the correct “fuel system type” for the vehicle under test, the locally written software will, as necessary and according to actual measured gas values, actually troubleshoot and offer remedial suggestions to guide end users to the source of  “wrong” readings. Using Recorded data with the Active Help On Demand diagnostic capabilities makes emissions troubleshooting this much easier as one can freeze and replay gas data multiple times, while the Help On Demand offers gas mixture remedial recommendations. This is just brilliant! Designed and written by a practicing automotive technicians it aligns itself perfectly to the needs of automotive technicians in any country.


Yet another unique and invaluable benefit offered by the Pro Gas Analyser to automotive technicians, is the product’s ability to measure and calculate the efficiency of exhaust catalytic converters!  With the present cost of a “CAT” this feature enables confirmation as to the condition of this expensive component.

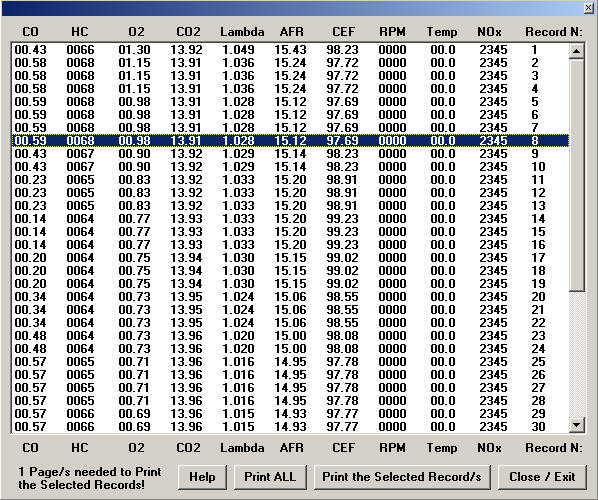

Recording Gas Data for up to 24Hrs. is easy and seamlessly. With the incorporated viewer, one can play back & forth recorded gas data like a movie, or switch between Graphs and Digital presentation on the fly. Using Recorded data with the Active Help On Demand diagnostic capabilities makes emissions troubleshooting this much easier as one can freeze and replay gas data multiple times, while the Help On Demand offers gas mixture remedial recommendations. This is just brilliant!

Petrol Exhaust Emissions Analyser - Live readings


The Gas Analyser is ready for use in the Testing Stations as well as in any automotive workshop. Customer database with “search” capabilities is also incorporated within the software. To eliminate the possibility of any fraudulent misrepresentation of the test results, measured values and test’s date/time can not be changed.

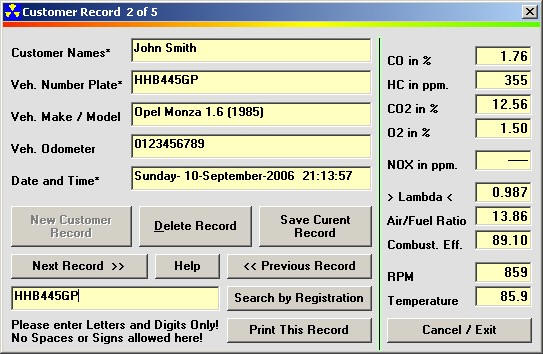

Petrol Exhaust Emissions Analyser - customer database

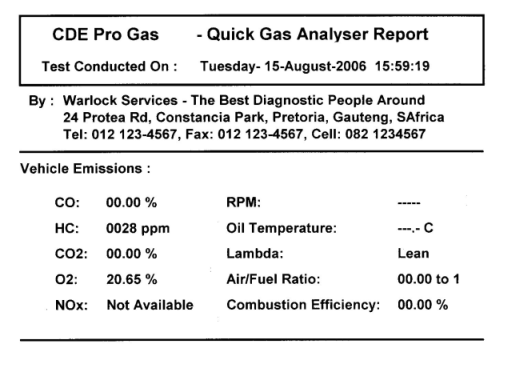

Chose between multiple Print outs to suit your needs:

Full Customer Printout,

Short Before&After Printout,

Customer Database Printout,

Gas Data Record Printout,

Graphs Printout

Diagnostic Printouts

...etc. etc.

Petrol Exhaust Emissions Analyser - Printing options

Petrol Exhaust Emissions Analyser - printing

Petrol Exhaust Emissions Analyser - database print


Its help file ( in excess of 50 pages) with details pertaining to each of the individual gasses (CO, HC, O2, CO2, NOx )  explained thoroughly, makes the Pro Gas Analyser an instantly available tutor on understanding exhaust emissions and on how to combat emission problems. Easily available form anywhere in the program, help is now truly just a click away!

We believe that no other similar product on the market offers as much, especially as regards user education and diagnostics in emissions analysis.

This was repeatedly stated by many technicians that bought or previewed the product.

There has been much talk about education in our country and we are proud to offer a user friendly product than makes a really different educational and working experience.

Go ahead, download a fully functional Demo of the Software for the Pro Gas Analyser and see for yourself.
